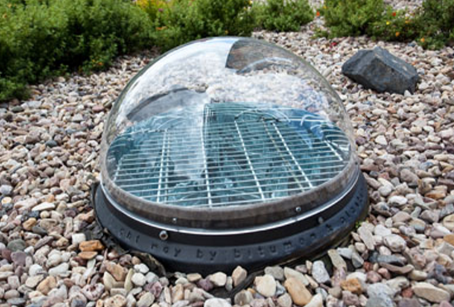

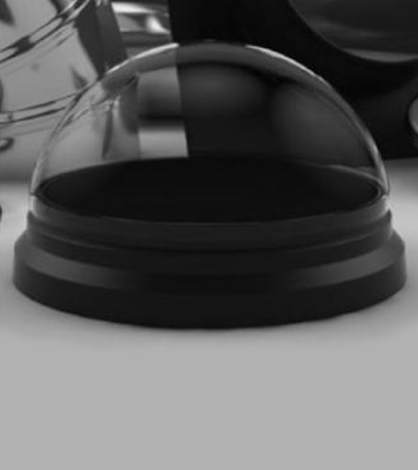

The roof dome SILVER

The ceiling dome is made of resilient material for large diameters sun tunnels. It excels in high efficiency of light colleting even in cloudy weather.

• Speacial resilient material Plexiglass
• High efficiency even in cloudy weather
• Pure, not disturbing design

Dimensions	Outer diameter	Height
Typ 600	550 mm	260 mm
Typ 800	790 mm	376 mm

Reflective sun pipe

The inside reflective layer is made of silver and silicon oxide, which are fixed by chemical vapor deposition in a vacuum. The layer mustn’t crack or peel or be warped by changes of temperature and humidity. Connecting the light tube to the flexible elbow, insulation element Blue Performance and a dimmer is easy due to systematic connections, which are standard part of package.

• Reflection of reflexive layer of the pipe 99,8%
• Ray diffusion during reflection in 45 angle in pipe <6%
• The basic material is aluminum, 99,7%
• Overall maximum distance of sun pipe up to 80m, includes 2 adjustable elbows 90 for the direction change of conduction. The conduction of the tube can be vertical or horizontal without any influence on power.
• The loss of light during the use of the element: within 10 meters 0,5%, more than 10 meters 0,7%



Dimensions	Outer diameter	Length
Typ 600	520 mm	625 mm   416 mm   1250mm
Typ 800	754 mm	625 mm   416 mm   1250mm

AdjUstable elbow

The elbow with adjustable angle in range of 0 – 50° is used for the direction change of conduction of the pipe. The flexible elbow is easy to connect to another elbow with the same diameter, the pipe, insulation element Blue Performance and a dimmer. The inside reflective layer is made of silver and silicon oxide, which are fixed by chemical vapor deposition in a vacuum. The layer mustn’t crack or peel or be warped by changes of temperature and humidity.

• Reflection of reflexive layer of the pipe 99,8%
• Ray diffusion during reflection in 45 angle in pipe <6%
• The basic material is aluminum, 99,7%
• The loss of light during the use of the element: adjustable elbow 45°, 2%, adjustable elbow 90°, 4%



Dimensions	Outer diameter
Typ 600	520 mm
Typ 800	754 mm

Ceiling diffuser

The ceiling diffuser is a light diffuser, which equally spreads light in the room and avoids glaring in interior. Quality ceiling diffuser is made of glass, which doesn’t turn yellow and transmits the light without any loss of its intensity or color change.

The diffuser is connected to a 200mm long pipe and it is easy to connect it to another sun pipe, insulation element Blue Performance, flexible elbow or a dimmer.

• It is made of sodium-potassium glass
• White color trim
• The color of RAL trim can be custom-made
• Individual surface adjustment in any decor provided by a customer

Dimensions	Height	Outer diameter	Inner diameter
Typ 600	16 mm	629 mm	517 mm
Typ 800	35 mm	856 mm	746 mm

Blue Performance

Thermal insulation element

The insulation element prevents thermal leaks through the pipe from the interior during winter. On the other hand, in summer, it prevents interior overheating due to high temperature outside.

Blue Performance prevents water condensation in the space of the pipe and following water splashing into the diffuser and the ceiling construction.

It is easy to connect the light tube to insulation element Blue Performance and a dimmer.

• Insulating double/triple glass filled with argon
• Bearing structural element made of Styrofoam
• Coefficient of thermal permeability double glass U 0,6W/m2K
• Coefficient of thermal permeability of triple glass U 0,4 W/m2.K

Additional LED light

It is used for illumination in the time of year when it is dark outside. Your sun tunnel Lightway will do the function of the sun tunnel as well as the ceiling light.

LED strap will be easily stuck in two threads on the inside of pipe above the ceiling diffuser.

Standard chromaticity of the light is warm white.

The power of LED light for individual types/sizes of sun tunnels:

• Typ 200, 300, 400 - power 40W
• Typ 600 a 800 - power 60W

The Dimmer

The shaft clamp inside of the pipe closes the supply of the light into the interior. It is easy to connect the dimmer to the refective pipe, adjustable elbow, insulation element Blue Performance or the diffuser.

Use options:
Typ 200
Typ 300
Typ 400
Typ 600
Typ 800

InstalLation

The Silver sun tunnels are suitable for pitched and flat roof as well as facades.

Every package includes all components, assembly accessories for the complete assembly. There are mostly different types of roof flashings for different types of roofs and roofings.

The additional installation kit contains assembly components necessary for successful and quality sun tunnel assembly. It includes: diffuser foils, flexible steam-tight foils, flexible tape, bitumen sealant.

The assembly kit is not automatically included in the order. The workers usually have their own tools and assembly materials. It’d be useless to pay extra for the assembly kit in this case.

If you need any help with the type of installation or choosing the installation kit, please contact Lightway support.
