MAXimal power for “maximal” buildings
Lightway MAXIMUS 5000
Lightway
MAXIMUS 5000

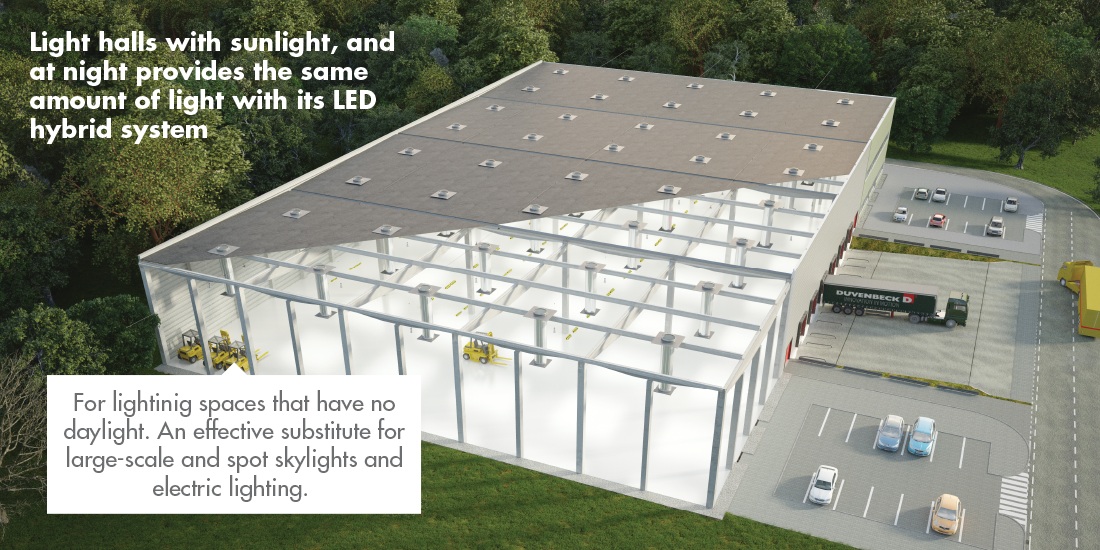

It is the best solution for daylight illumination of big spaces.
Enormous light power of the sun tunnel brings enough of daylight for quality illumination and meeting the hygienic standards.
Together with the additional Lightway LED Hybrid 5000, it provides complex solution for industrial sheds, offices and commercial spaces and warehouses illumination.
Diameter of sun tube: 1159 mm
Ideal for use of all types of rooms in family houses.
For pitched roof (5°-60°) installation.
Suitable for bigger spaces, offices and administrative spaces, smaller shops etc.
Intended for flat roof (0°-5°) installation.
It is recommended to use large diameter sun tunnels, such as LW MAXIMUS, in large industrial buildings such as production, warehouses, shops.
Suitable for fasade installation.
main features
- Enormous light power for illuminating big spaces with daylight.
- Easy and quick installation within 15 minutes.
- Better attributes than classical skylights.
- Effective overall maximum distance of sun pipe up to 80m.
- Heat permeability coefficient of sun tube: U<0,7 W/m2K.
- Possibility od adding the additional lighting LED Hybrid 5000.
Choose your own CRYSTAL sun tunnel
in the eshop

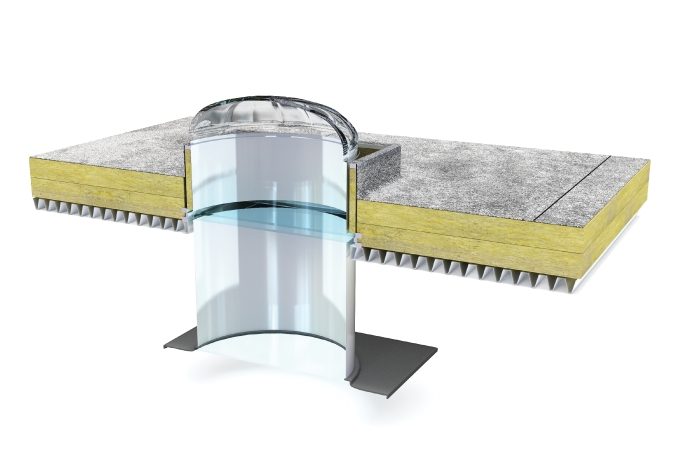

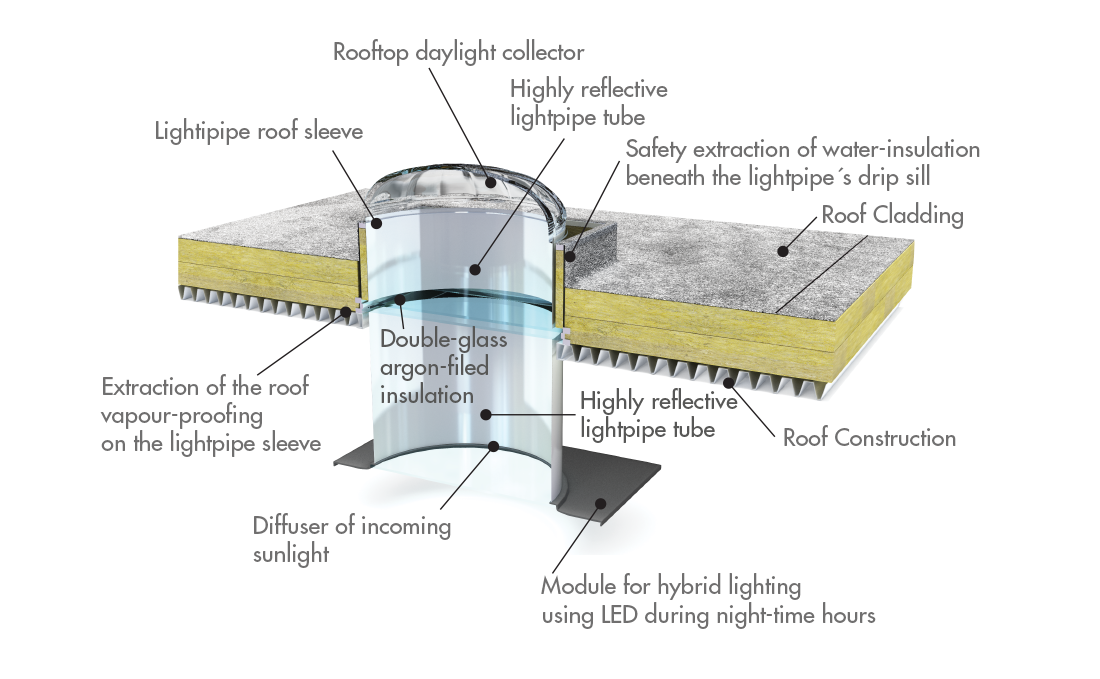

Lightway Maximus
in roof structure
No thermal leaks during the winter
Compared to the skylights, there are no thermal looses and that is because the use of the isolation element Lightway Blue Performance.

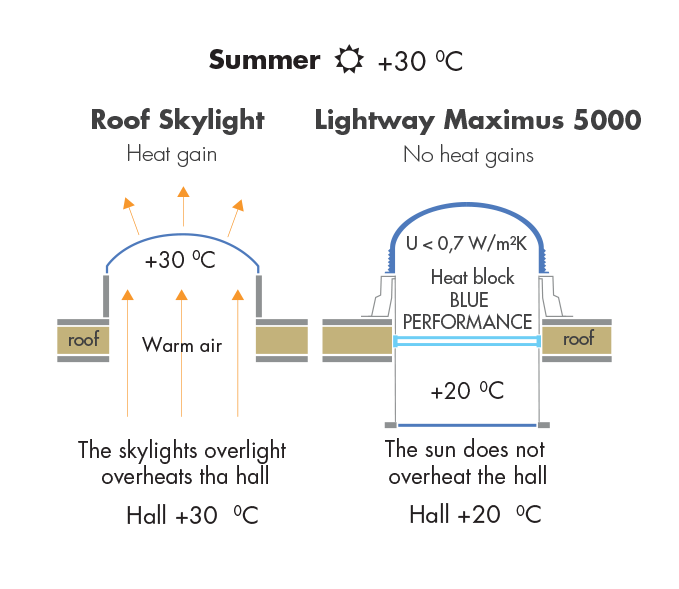

No overheating of the rooms during the summer
Compared to the skylights, there is no room overheating and it doesn’t transmit infrared light, which would disturb customers or workers inside.

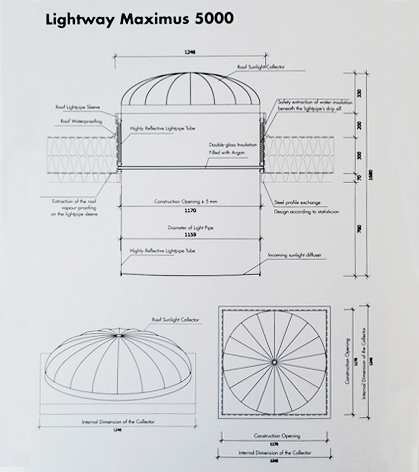

Comparison of Lightway MAXIMUS 5000
and classic roof skylights
Steady lighting
Lightway Maximus 5000 has strong ability to spread light equally thanks to the diffusers. The workers or customers have better orientation and they have a better view around the shed. One Lightway Maximus 5000 replaces 3-5m of classical skylight.

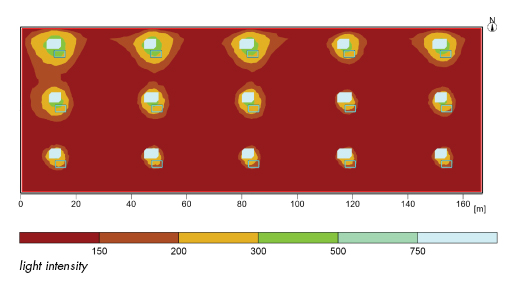

The daylight calculation with use of skylights shows inequality of interior illumination.

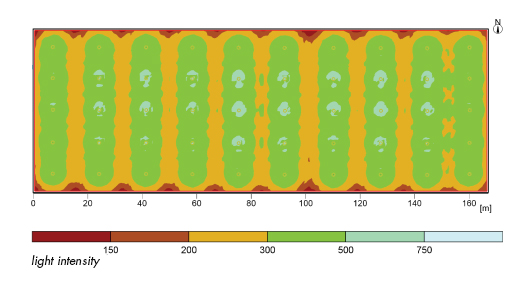

The daylight calculation with use of Lightway Maximus 5000 shows equality and high power than the skylights have.

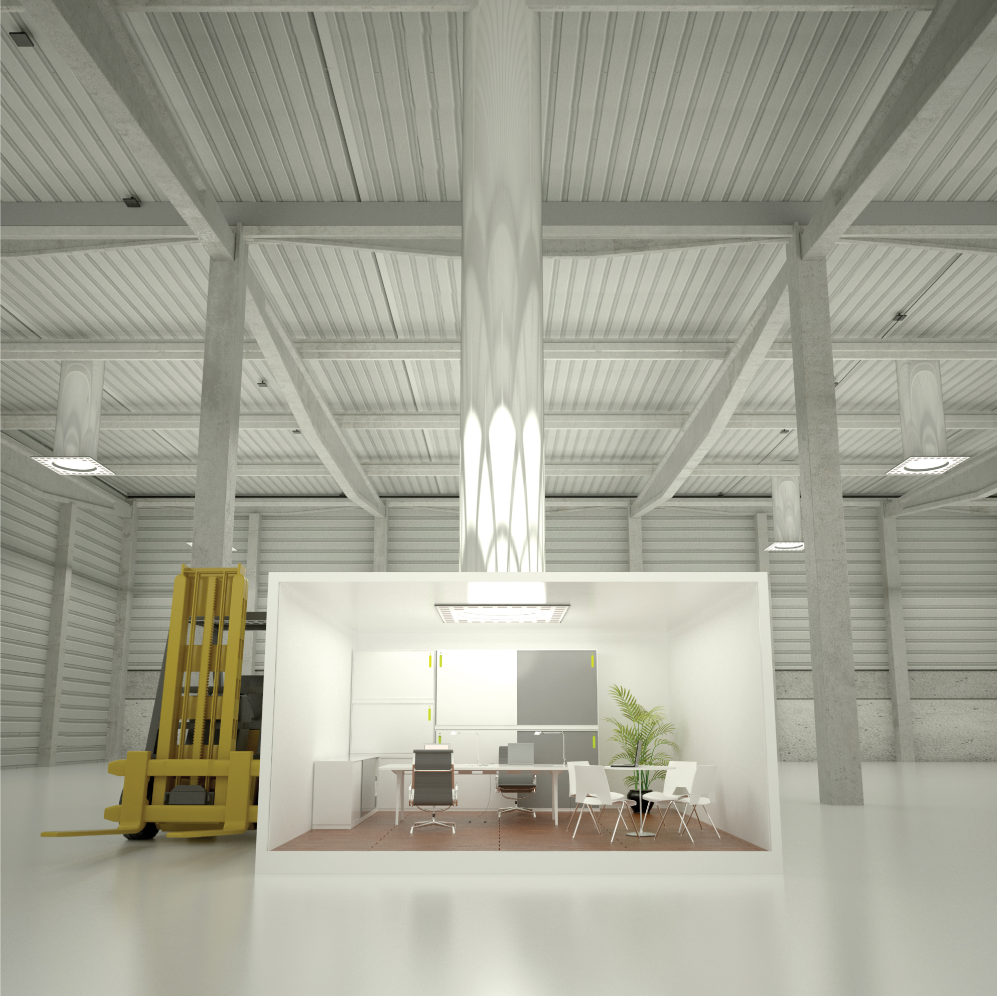

The pipe overcomes more than 8 meters of length and it illuminates built-in offices.

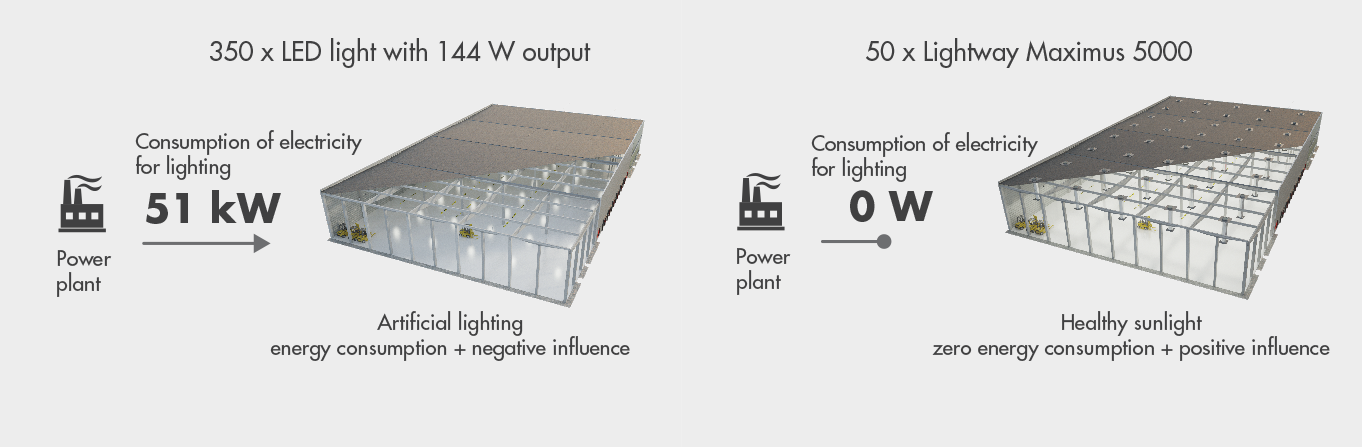

Electricity savings
For illuminating 10 000 m2 shed is necessary to have 50 kits of Lightway Maximus 5000, which replace 350 electric 350 x 144 W LED lights.

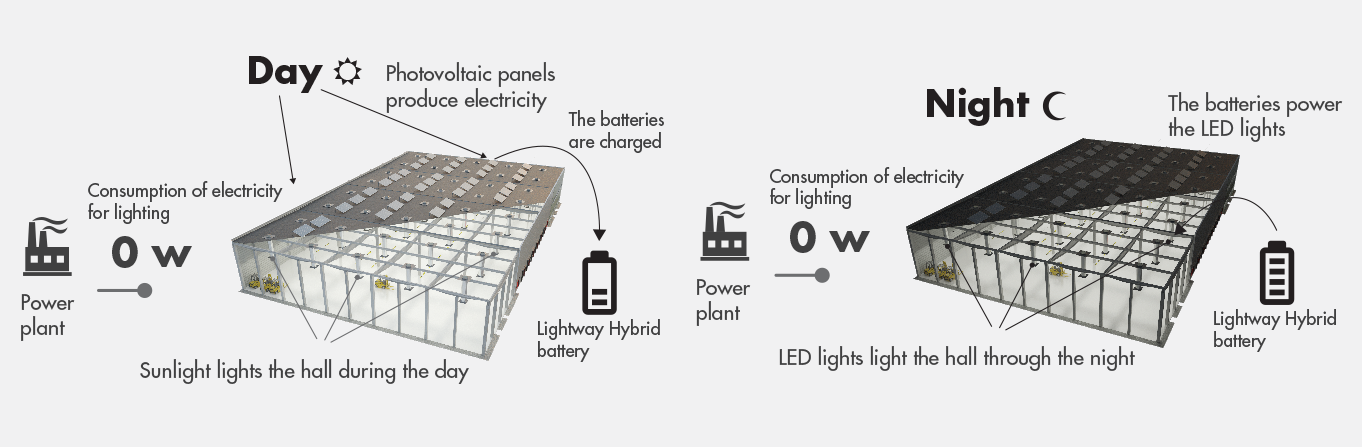

Lightway Hybrid 24 Nonstop
24/7 light without electricity costs
Hybrid is the combination of daylight and LED light with automatic regulation of power for maximal electricity savings and the increase of LED source service life. It brings the daylight during the day. During night, it is connected to its battery storage, which is charged by photovoltaic panels during the day. Zero costs of lighting during the day as well as night.
Accessories
Lightway MAXIMUS 5000

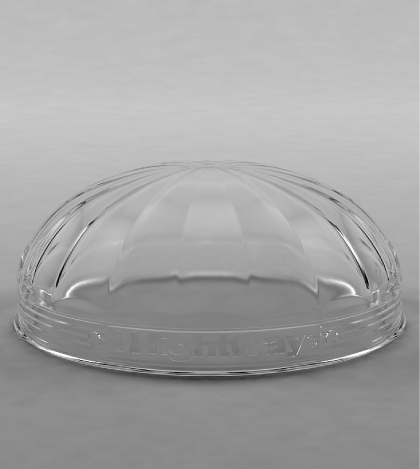

Roof dome MAXIMUS
Design of the dome is specially made for the maximal efficiency of light collecting during the whole day even if it is cloudy. It is made of quality polycarbonate with high light permeability and endurance to weather conditions.
| Dome dimensions: | Outer diameter | Height |
|---|---|---|
| 1246 mm | 330 mm |
Extension sun pipe
The inside reflective layer is made of silver and silicon oxide, which are fixed by chemical vapor deposition in a vacuum. The layer mustn’t crack or peel or be warped by changes of temperature and humidity.
Connecting the light tube to the flexible elbow, insulation element Blue Performance and a dimmer is easy due to systematic connections, which are standard part of package.
- Reflection of reflexive layer of the pipe 99,8%.
- Ray diffusion during reflection in 45 angle in pipe <6%.
- The basic material is aluminum, 99,7%.
- Overall maximum distance of sun pipe up to 80m, includes 2 adjustable elbows 90 for the direction change of conduction. The conduction of the tube can be vertical or horizontal without any influence on power.
- The loss of light during the use of the element: within 10 meters 0,5%, more than 10 meters 0,7%.
| Dimensions: | Outer diameter | Length |
|---|---|---|
| 1159 mm | 1250 mm | |
| 1159 mm | 625 mm | |
| 1159 mm | 416 mm |
The adjustable elbow
The elbow with adjustable angle in range of 0 – 45 is used for the direction change of conduction of the pipe. The flexible elbow is easy to connect to another elbow with the same diameter, the pipe, insulation element Blue Performance and a dimmer.
The inside reflective layer is made of silver and silicon oxide, which are fixed by chemical vapor deposition in a vacuum.
- Reflection of reflexive layer of the pipe 99,8%.
- Ray diffusion during reflection in 45 angle in pipe <6%.
- The basic material is aluminum, 99,7%.
- The loss of light during the use of the element: adjustable elbow 45°: 2%, adjustrable elbow 90°: 4%.
| Diameter: | 1159 mm |
|---|
The dimmer
The shaft clamp inside of the pipe closes the supply of the light into the interior. It is easy to connect the dimmer to the refective pipe, adjustable elbow, insulation element Blue Performance or the diffuser.
Square ceiling diffuser
For plasterboard ceiling, paneled ceiling, trapezoidal ceiling or concrete soffit.
| Dimensions: | 1200 mm X 1200 mm |
|---|
LED HYBRID 5000 Light
The LED Hybrid 5000 lights complement sun tunnels Lightway MAXIMUS 5000. It secures complete illumination during the time when the Sun is down, for example at night or late in the afternoon.
In the combination with Lightway LED Hybrid Auto Control 5000 system, the management of light intensity is automatic.
| Power: | 95 W / light |
|---|
Safety foil
Safety foil protects from violent intrusions. The foil can be a part of the isolate doubleglass package of sun tunnel MAXIMUS 5000.
Assembly accessory
The handle of sun tunnel and and the anchor rope are used for the pipe attachment extended up to 4 meters. The connecting pipe isn’t self-supporting in bigger lengths, that’s why it is necessary to attached it to stable part of the building.
The additional installation kit contains assembly components necessary for successful and quality sun tunnel assembly. It includes: diffuser foils, flexible steam-tight foils, flexible tape, bitumen sealant.
The assembly kit is not automatically included in the order. The workers usually have their own tools and assembly materials. It’d be useless to pay extra for the assembly kit in this case.
If you need any help with the type of installation or choosing the installation kit, please contact our customer service.
