Lightway Tower

System

Get rid of electric light and let the sun in

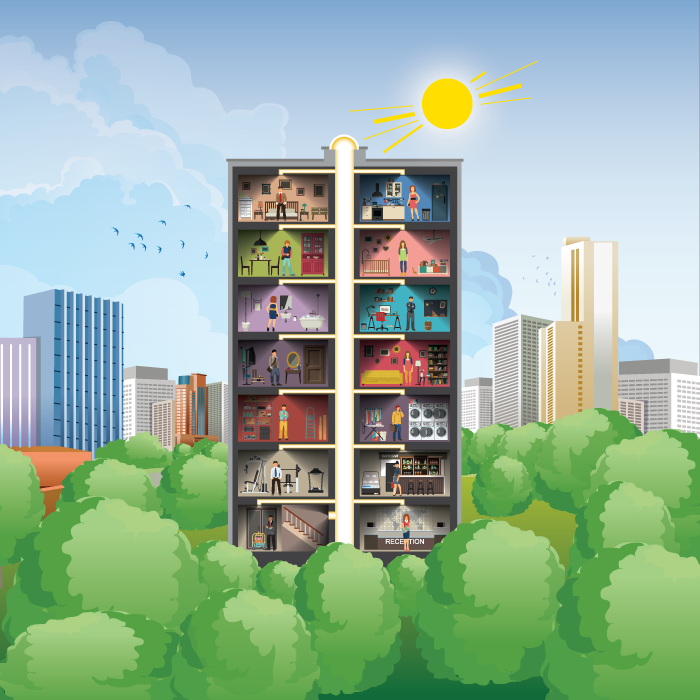

The Central tunnel collects day light from the level of the roof and guides it through the whole building to the lowest floor.

The horizontally connected tunnel pipe directs sunlight to individual floors of the building and into dark spaces.

Day light is brought into interior spaces where it would normally not reach. The results are hallways, stairways, cloak rooms and bathrooms illuminated with sunlight.

Offices, receptions, and underground parking garages are also illuminated. Thanks to natural sunlight, building interiors look more friendly.

PERFORMANCE

Central Vertical Sun Tunnel:20 000 – 160 000 lumens
Horizontal Directional Sun Tunnel:5 000 – 40 000 lumens

Dimensions

Central Vertical Sun Tunnel:

800 x 800 mm to 2 500 x 2 500 mm. The dimension designs are determined by the spatial possibilities of the building and requirements for sunlight intensity.

Horizontal Directional Tunnel:

Diameter: 156 – 760 mm, or a diffuser window with a transfer to the central tunnel with dimensions from 300 x 300 mm to 950 x 950 mm. Tunnel turns can be made at angles between 0 - 90° from the direction of light flow.

WEIGHT

Central Vertical Tunnel:5 – 9 kg for 1m of lenght
Horizontal Directional Sun Tunnel:1 – 3 kg for 1m of lenght

Maximum Pipe Length

Central Vertical Tunnel: max. 60 – 195 m
Horizontal Directional Sun Tunnel: max. 5 – 15 m

Roof Component

The roof component with the sunlight collector and the roof extension for attaching to the layer of roof cladding is included in the Lightway delivery.

Technical Design

For an exact technical design from Lightway it is necessary to submit: Requirements for the amount of day light in the interior with indications of which spaces day light is necessary, the height of the building, space possibilities for the Central tunnel and for the Horizontal Directional tunnel. The geographic position of the building is also required. The output of the submission is the technical specification and dimensions of the Lightway Tower system and a daylight calculation for the interior and price calculation.

Installation

Is carried out by trained Lightway workers or under Lightway supervision.

Guarantee 10 years.
